PHF  Dellorto

Dellorto no longer manufacture PHF carburettas with clamp type manifold fittings as used on  the 860/900 GTS, Darmah Pantah, 900SS and MHR . The only option is to rebuild your old carbs or go for as set of refurbished carbs. I refurbish all my own carbs, I use all new parts including slides where necessary. Even early type slides ( see my explanation of early/late slides here) are no longer available but later type can be adapted. I also keep all the spare parts for PHF in stock if you want to do your own refurbishment.
Should you want  do your own refurb I strongly recommend you change your float valves, your accelerator pump diaphragms Needles and needle jets as a bare minimum. You will also need a full gasket and seal set. One per carb.



I buy PHF 30/32/36 clamp fit carbs

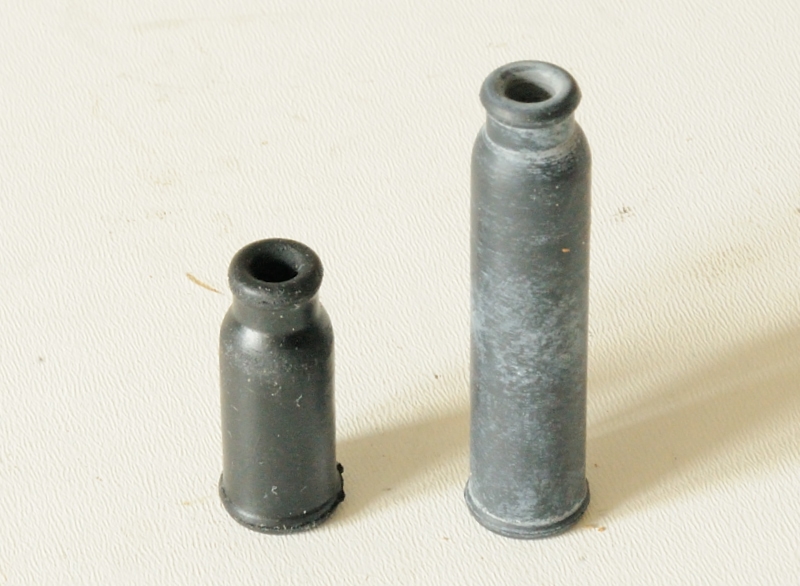

Short or long cable adjuster boots for throttle and choke inlets on PHF/PHM/VHB carbs £1.00 each

PHF 36 AD/AS Guzzi Lemans
Excellent pair of 36’s with side pull tops, stripped and rebuilt, mostly new parts but original slides that show very little sign of wear.
Main: 135
Pilot: 60
Slide: 60/3
Needle: K5
Emulsion tube: 265AB
£625.00 Pair

Dellorto PHF Choke parts

Dellorto PHF accelerator pump parts

Dellorto PHF parts

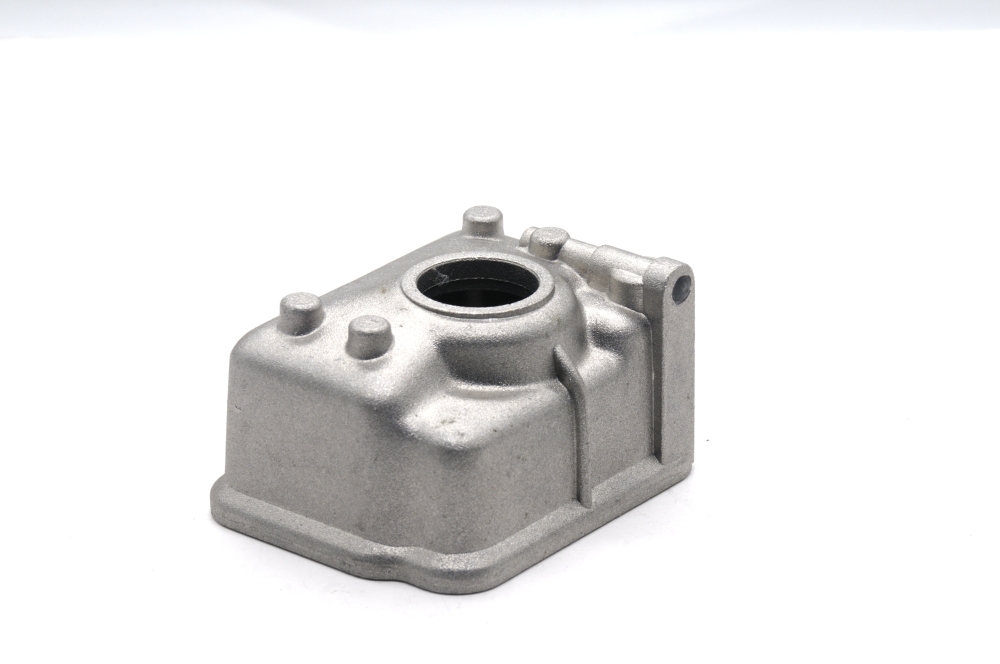

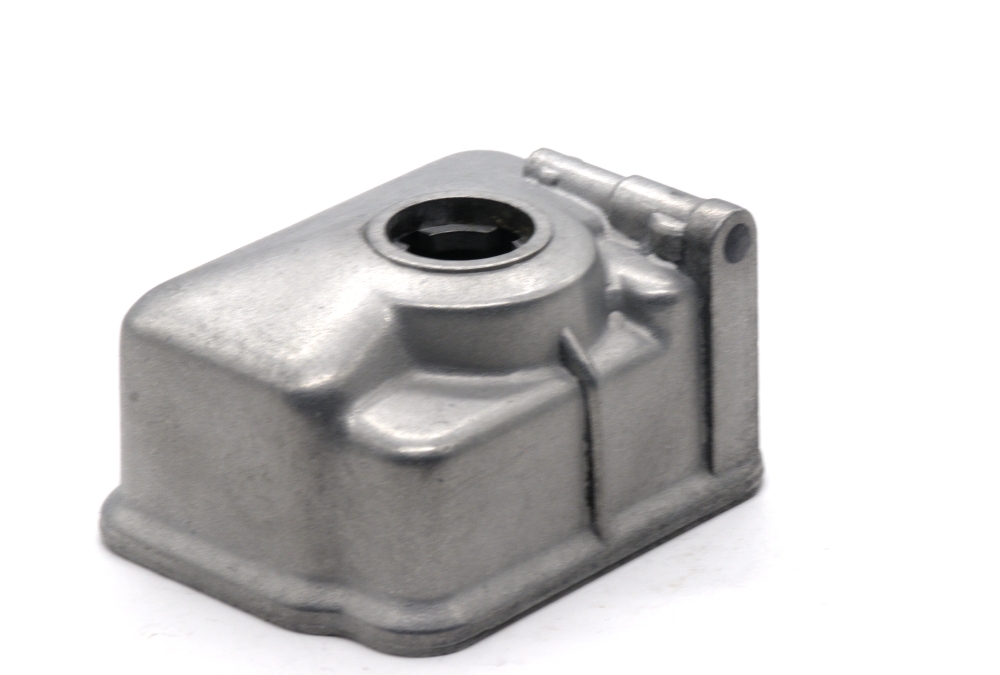

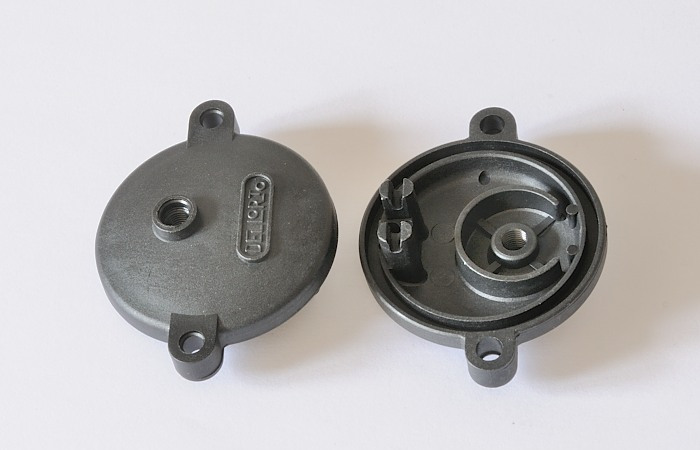

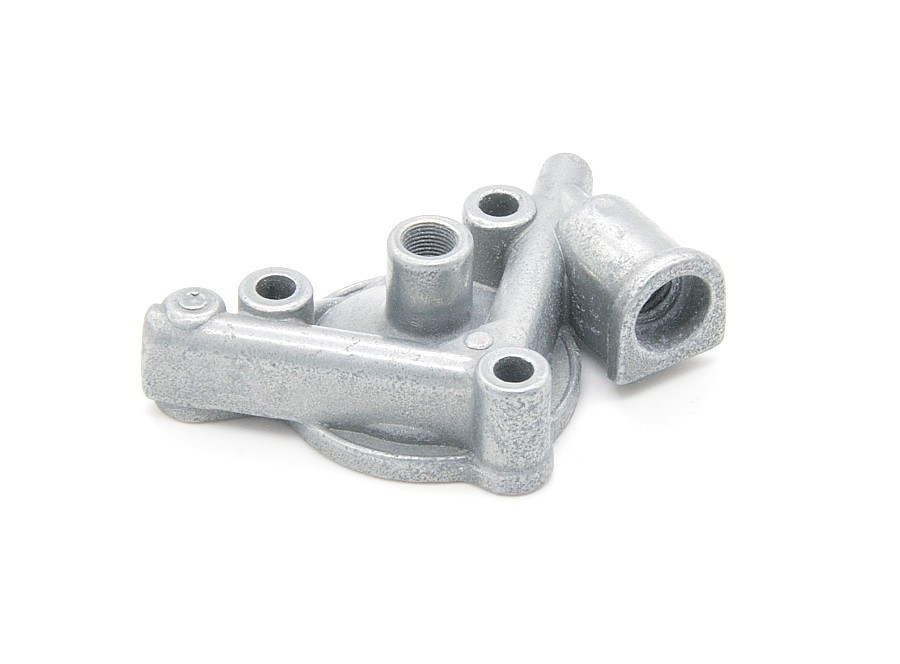

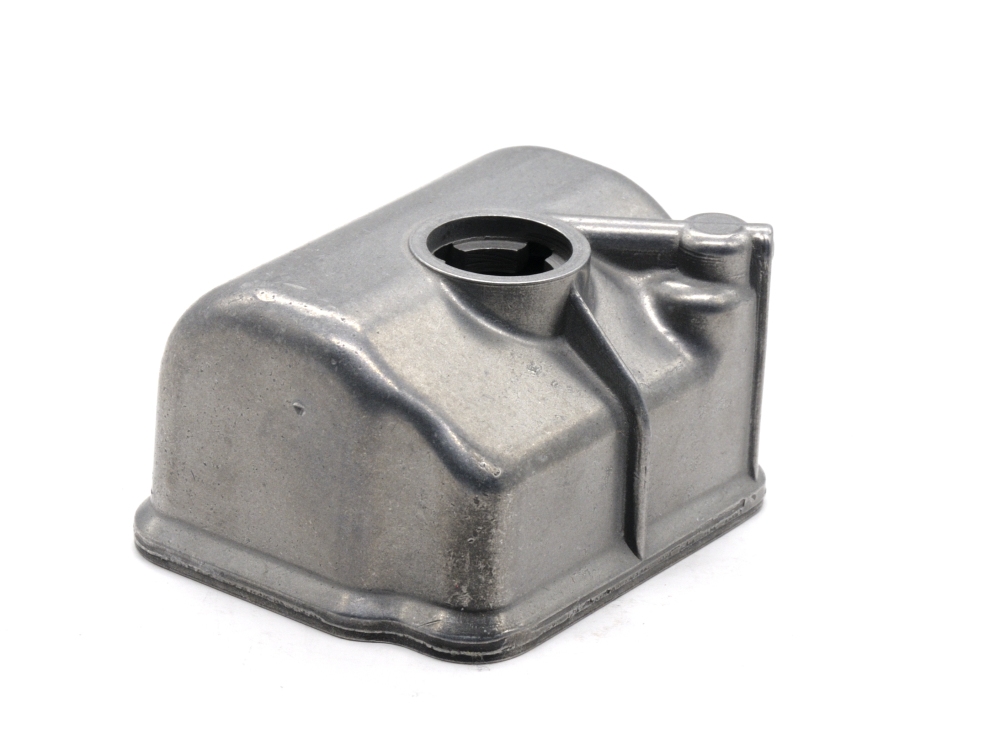

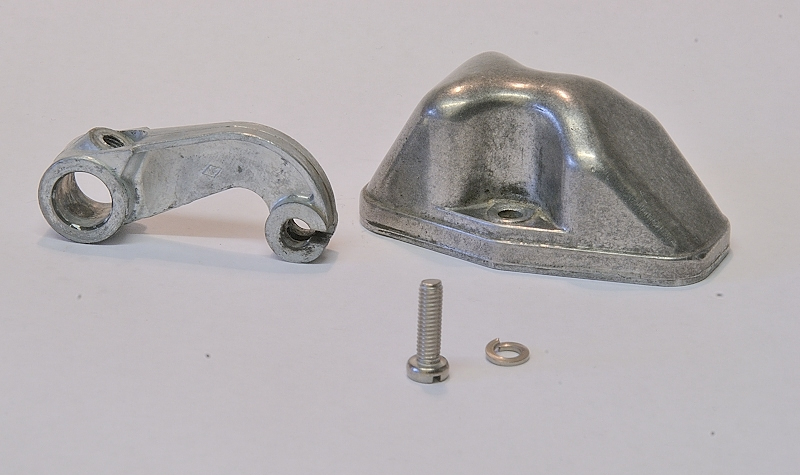

Pump housing bare casting £24.00 each new. £15.00 each good used

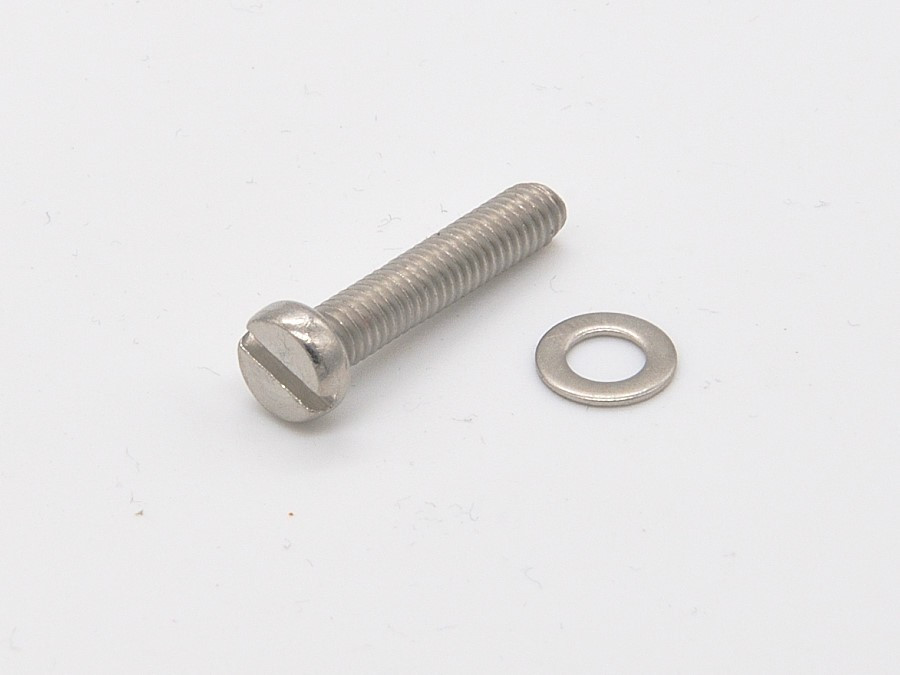

Diaphragm pump housing screw and washer in stainless £0.70p each 3 needed

Pump top casting non return valve £16.00 each (Sorry even that's cheaper than Dellortos price)

Pump Nozzel holder seal washer £0.80

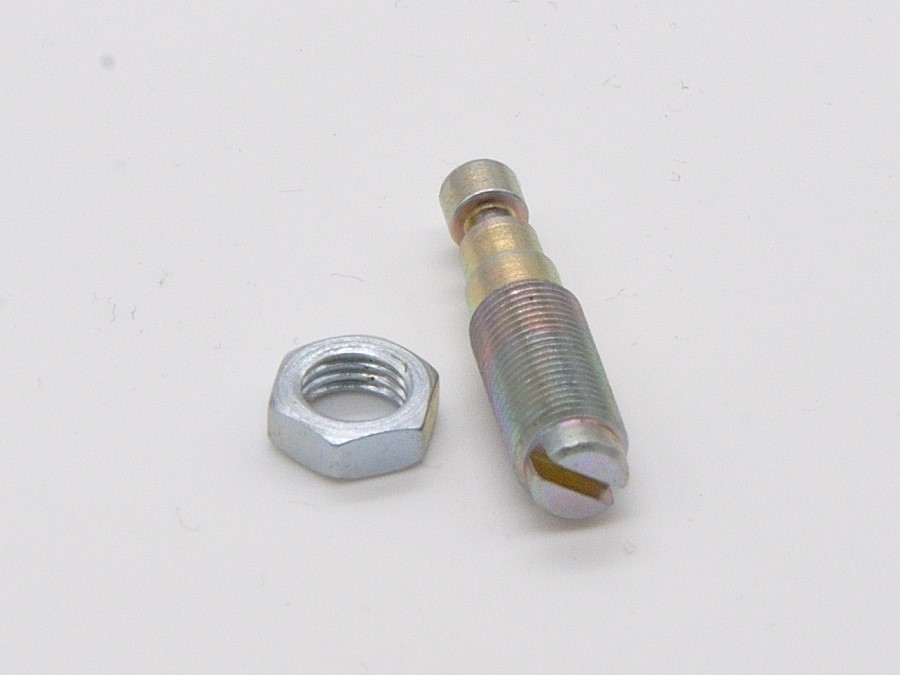

Pump adjuster stop and nut With o-ring £4.95

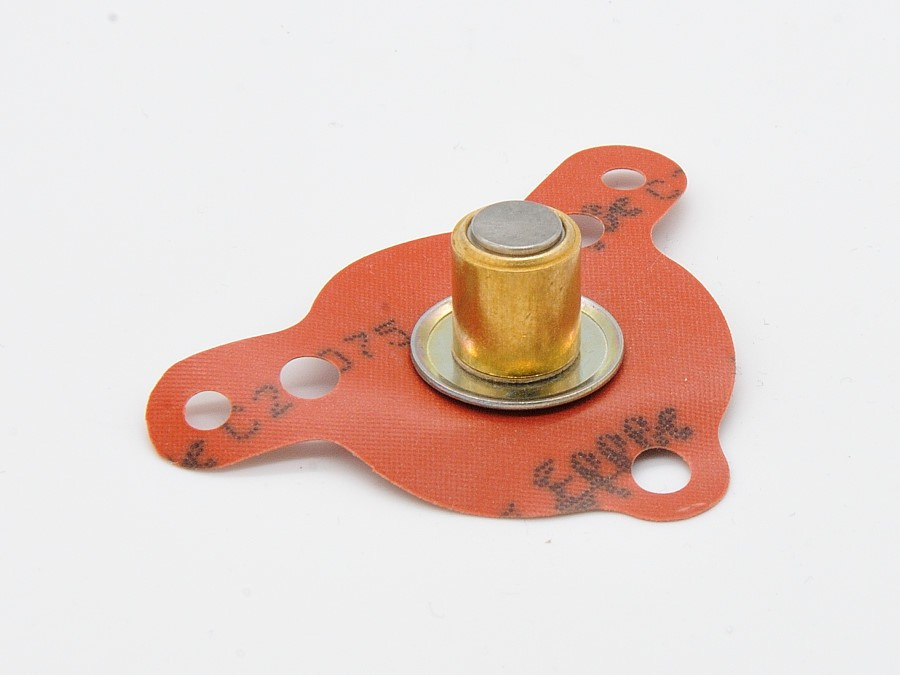

Accelerator pump diaphragm  Dellorto price £21.76
My Price £19.50

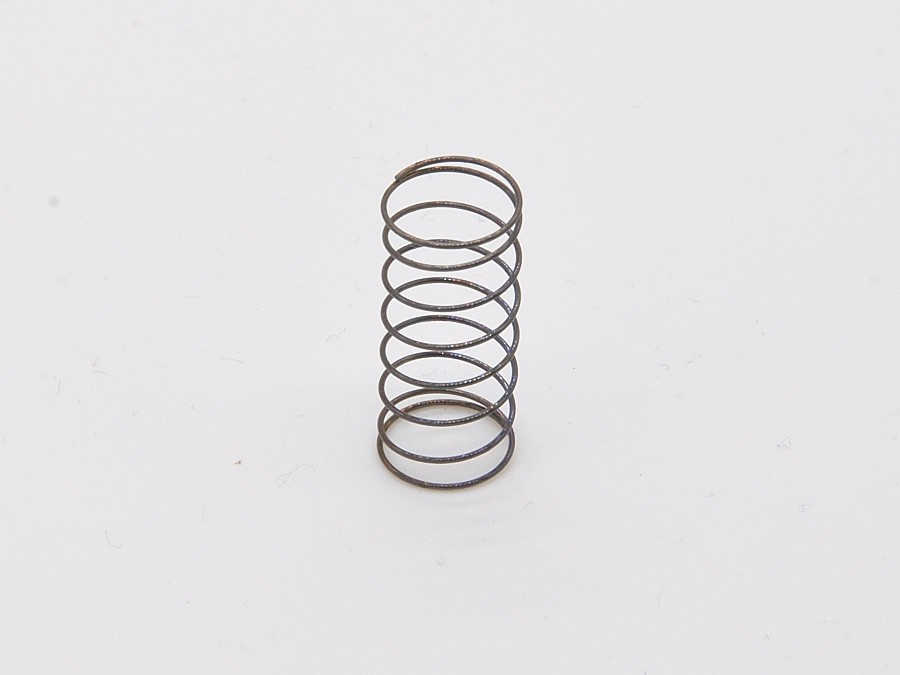

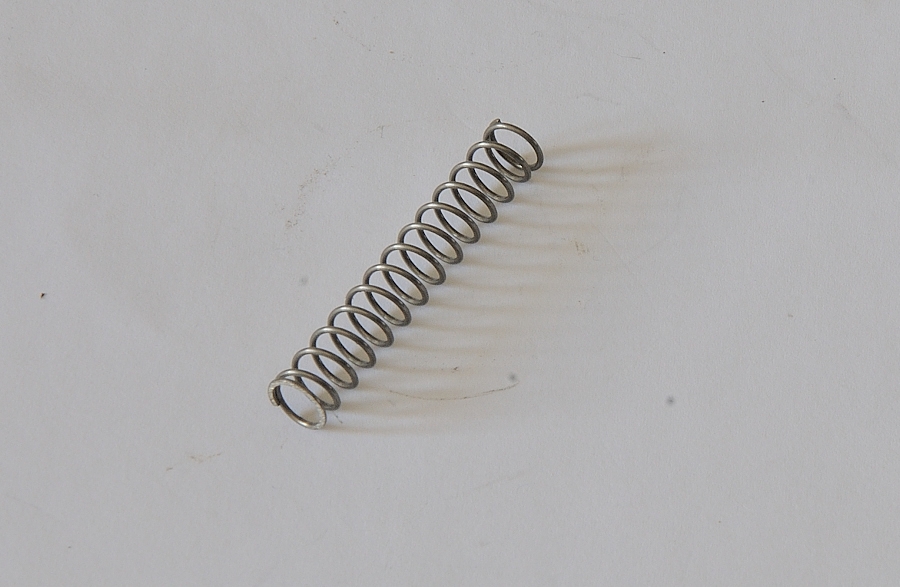

Accelerator pump diaphragm pump spring £1.55 each

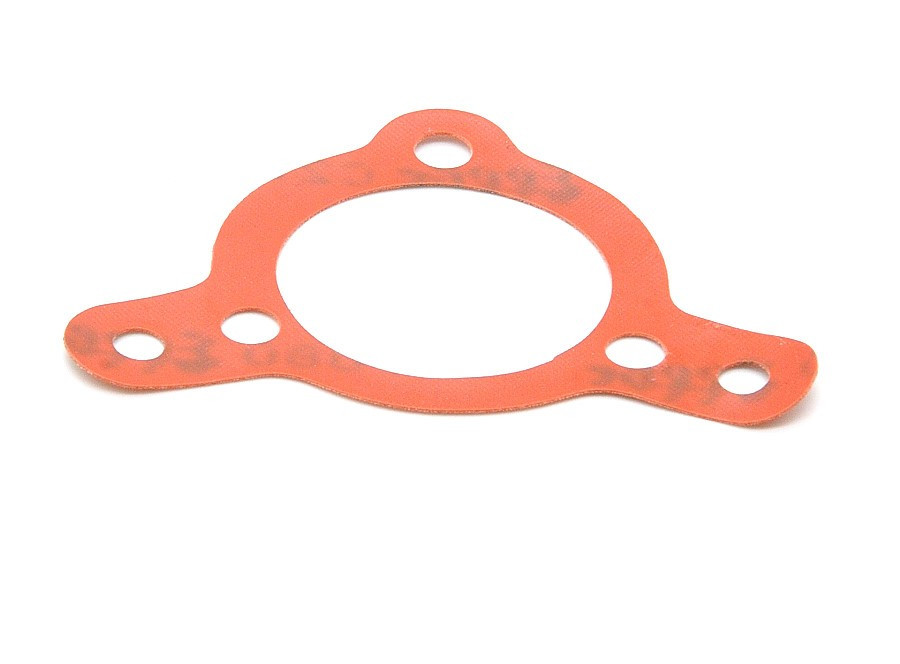

Pump diaphragm gasket £3.45

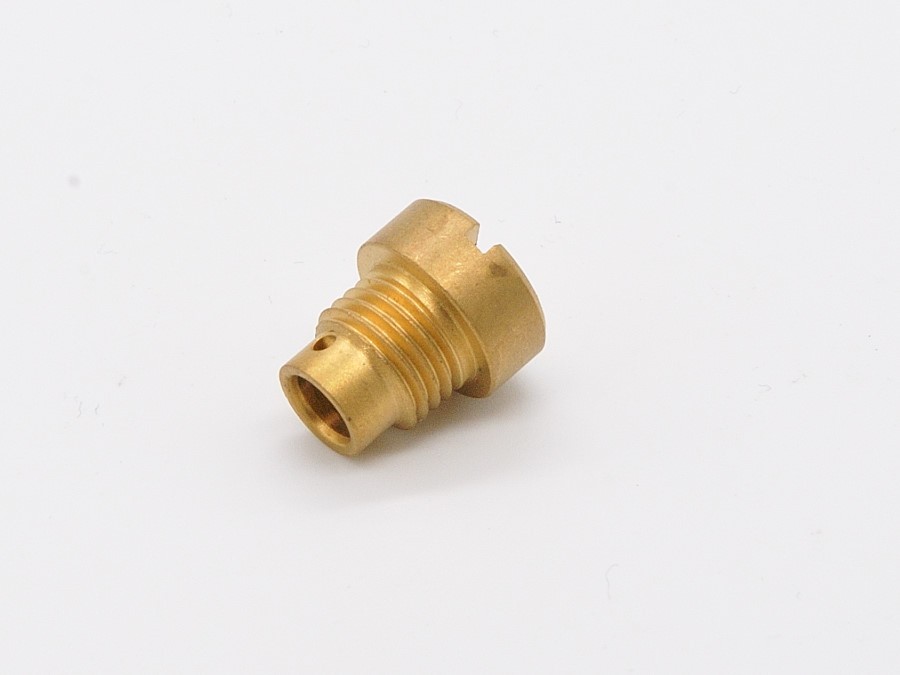

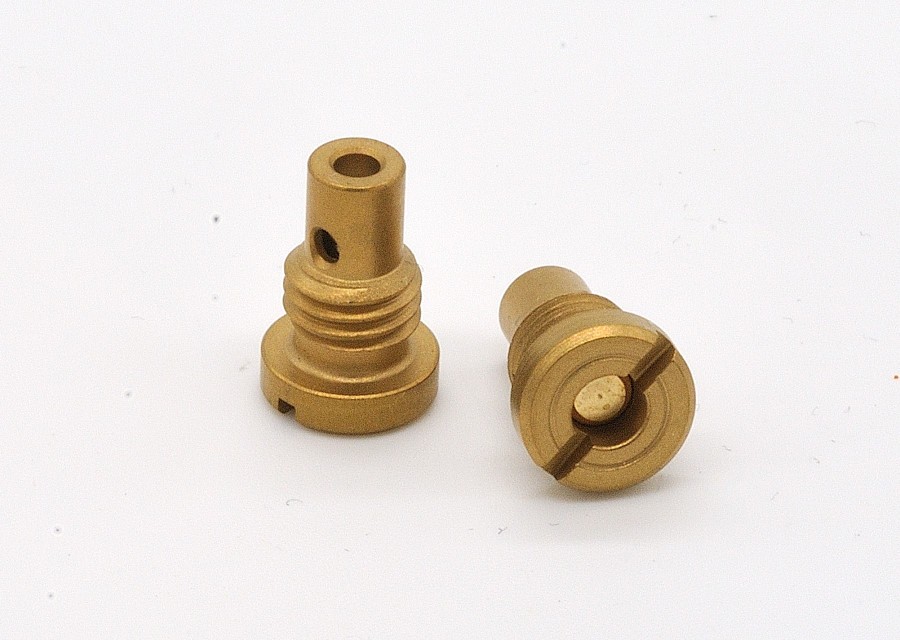

Accelerator pump nozzle holder 7470 £8.25

Accelerator pump nozzles for PHF available in sizes
7851-40/55/38/50/35
£6.25

Accelerator pump pick up jet/valve for PHF/PHM
Part No.8557
 £8.20

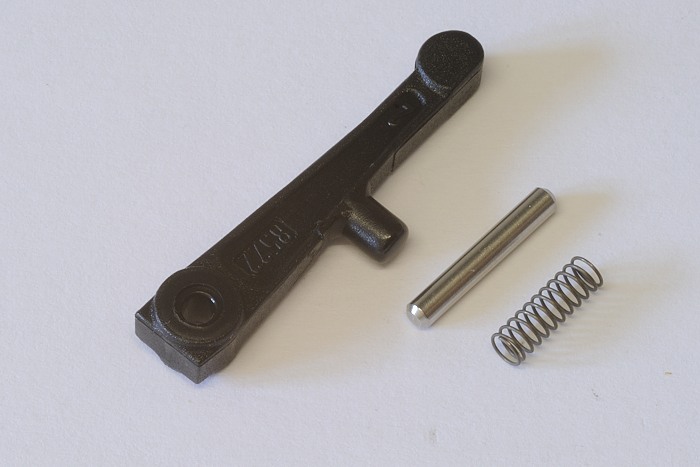

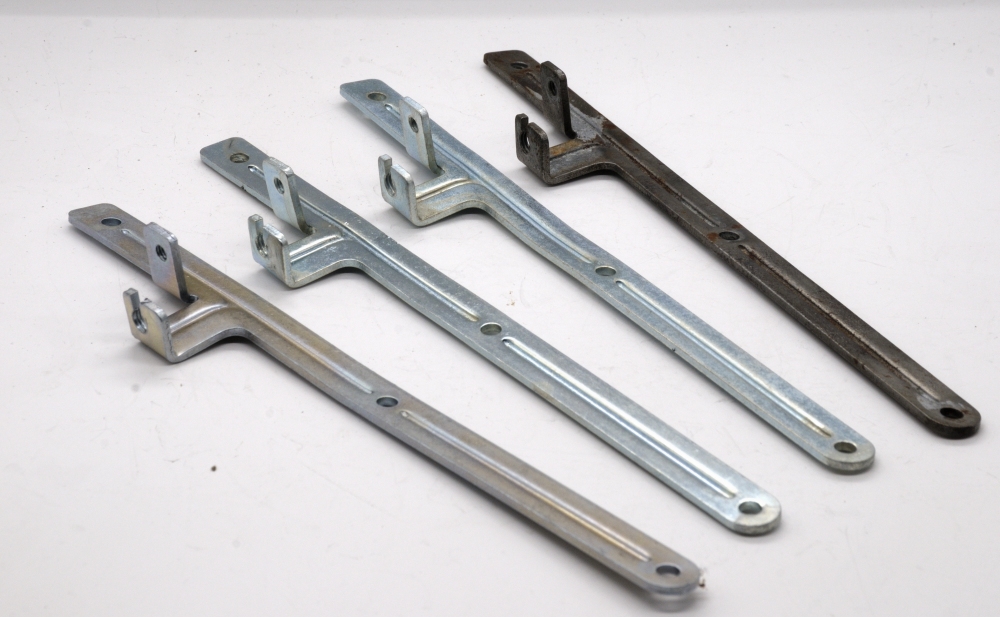

Accelerator pump Arm for PHF 38/40/41 £4.80
Accelerator pump pin with spline for PHF Metal tops £2.30
Accelerator pump pin without spline for PHF plastic tops £2.30
Accelerator pump arm spring for PHF £0.80

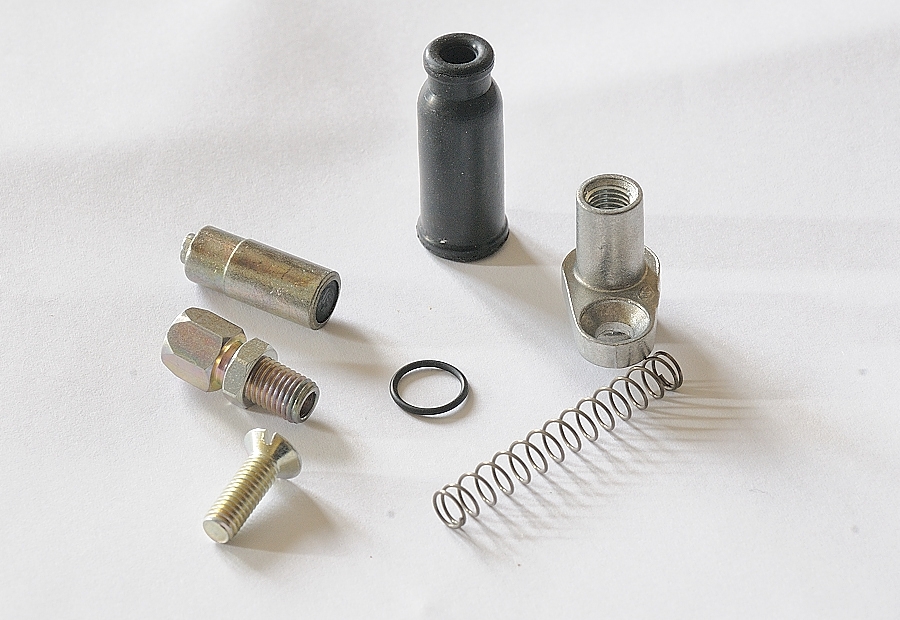

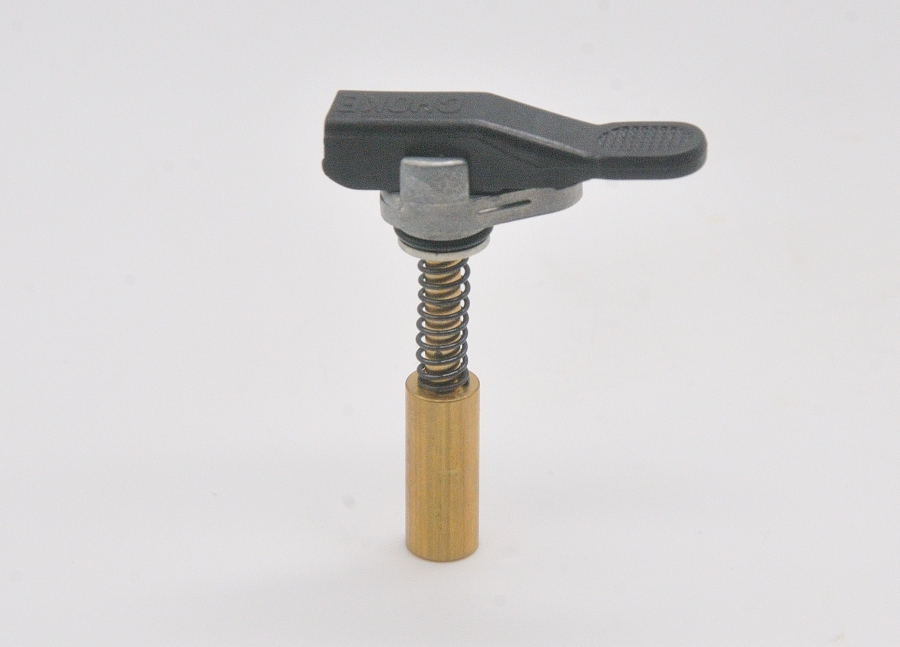

Complete cable choke assembly to replace flip top chokes. £15.75 each

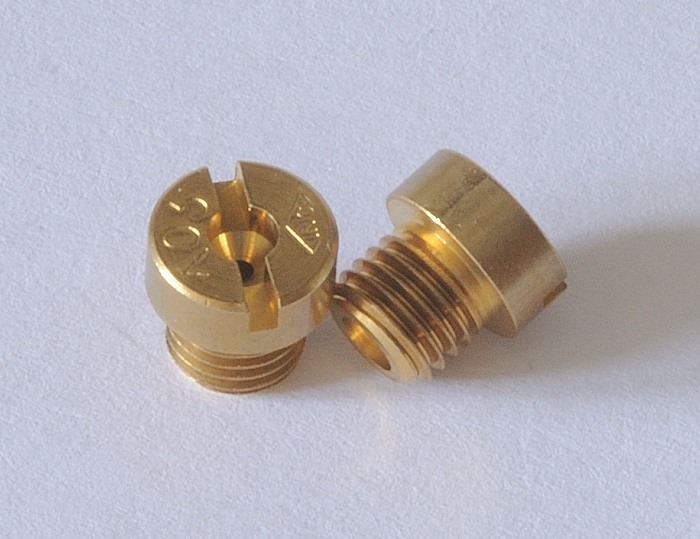

Choke pick up jet PHF available in sizes
7746- 40/45/50/55/60/65/70/80/85/90

£6.10

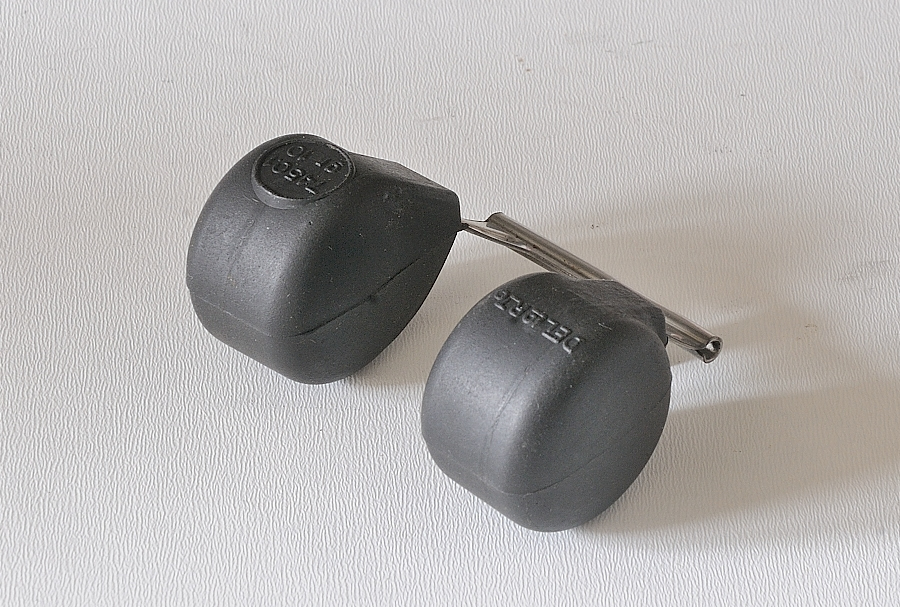

Flip top choke levers for PHF carbs, replaces the cables. 8293 Long £16.50 each

Choke piston £4.50

Choke piston spring 0.80p

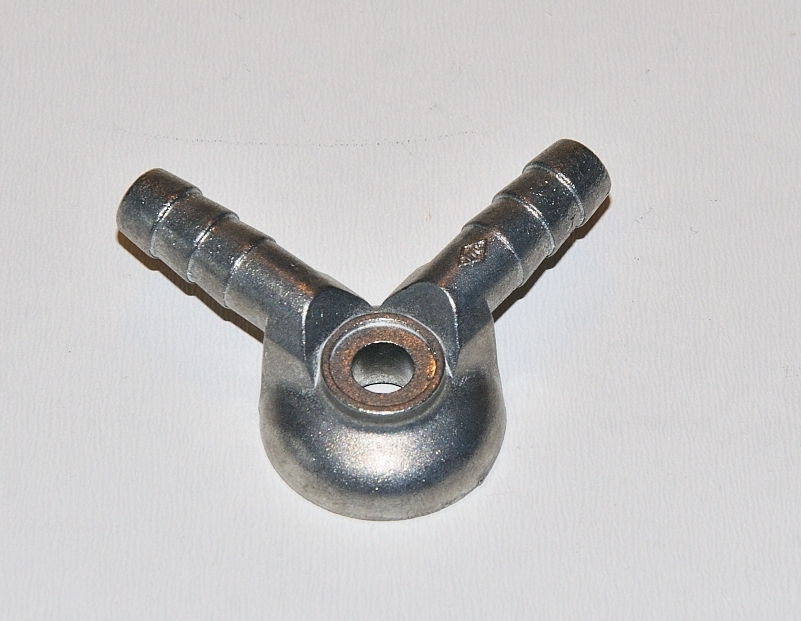

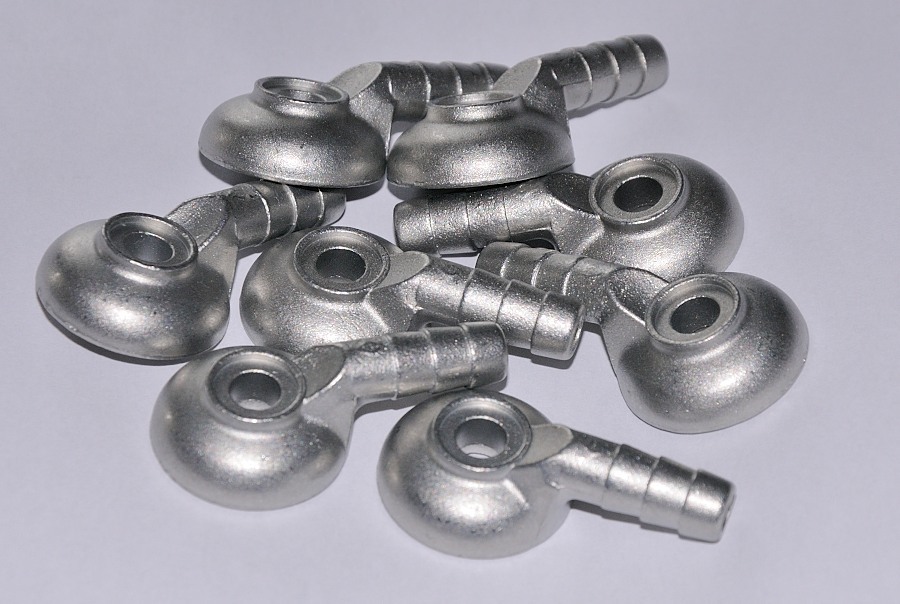

Double inlet alloy fuel banjo

£9.95

Single inlet alloy fuel banjo

£9.95

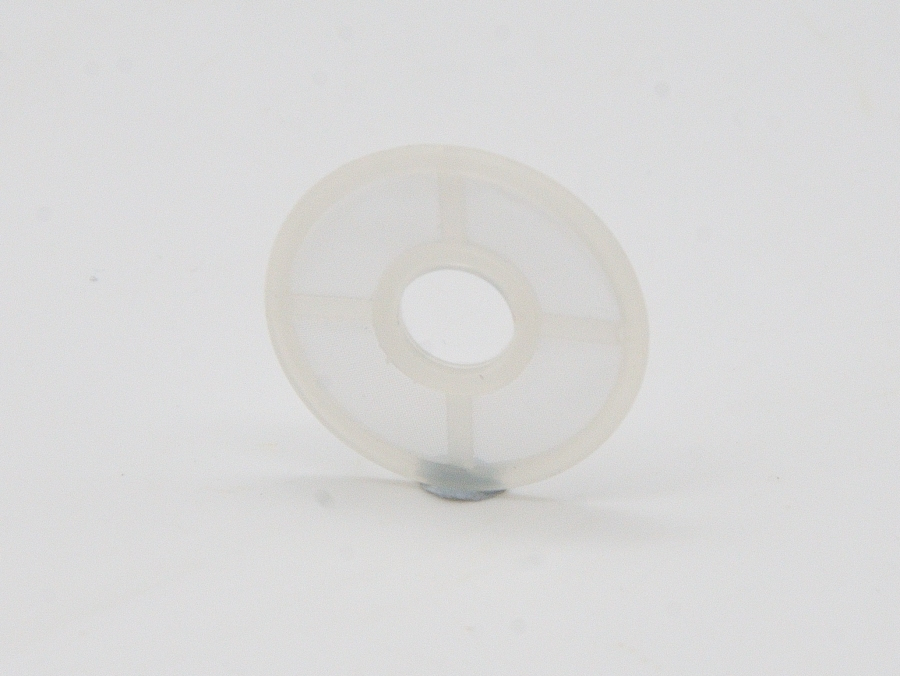

Fuel inlet banjo filter £2.95 each

Bolt for holding fuel banjo £1.25

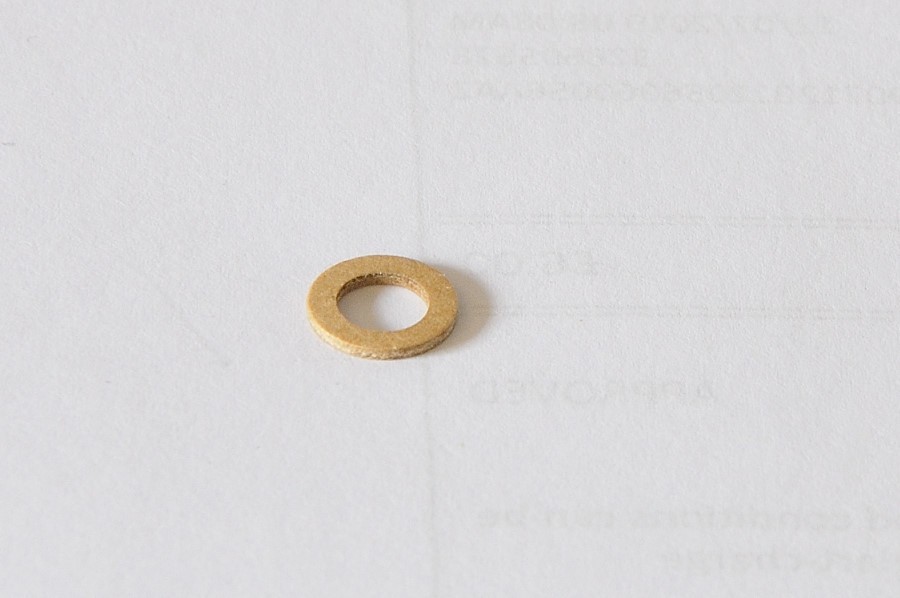

Fibre washer for fuel banjo bolt £0.80

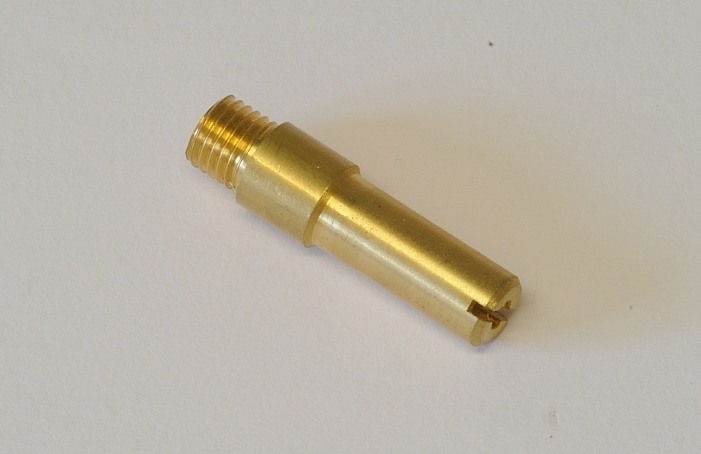

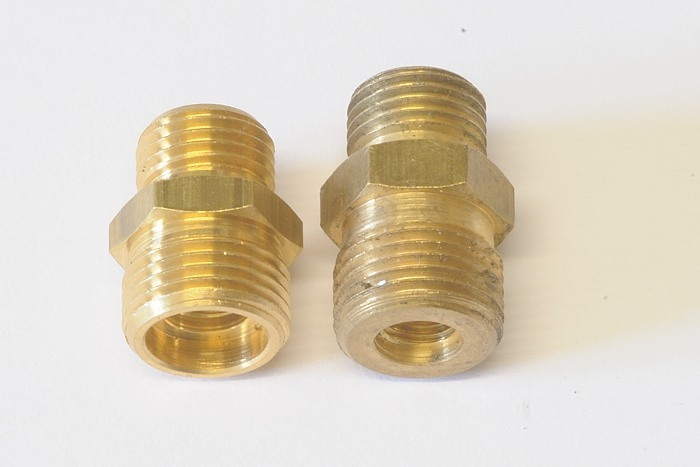

Main jet holders in 2 sizes  Long for deep 14mm spanner float bowl nuts. Short for 17mm and 21mm spanner float bowl  nuts
Short 8885 £6.95
Long 8552 £6.95

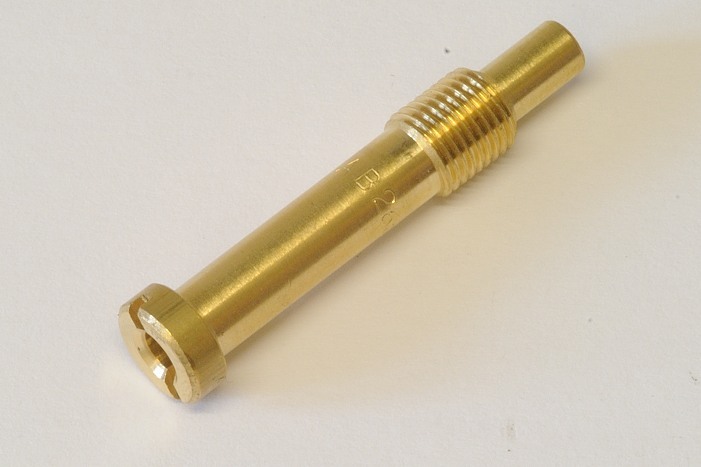

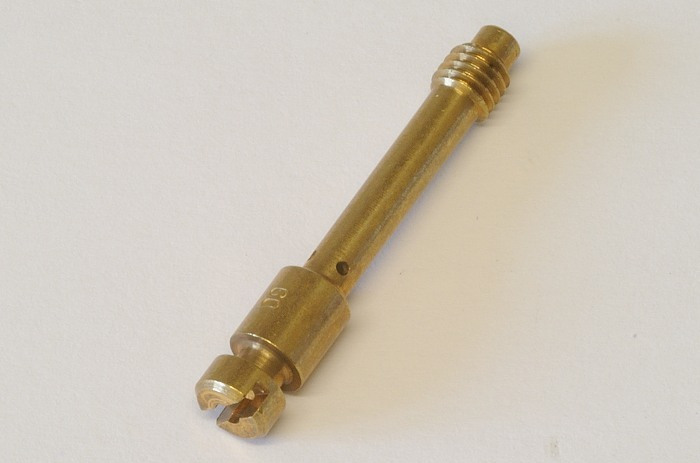

PHF Emulsion tubes available in sizes
AB260/262/264/265/268/270/272/275/278
  £11.50 New larger range

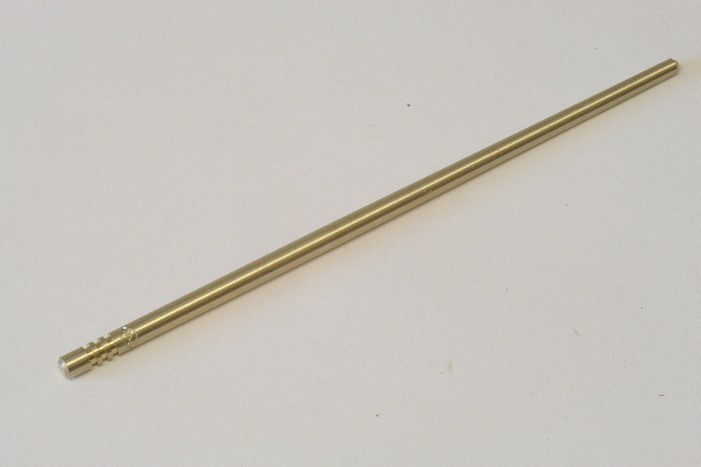

Comprehensive list of Needles here

Comprehensive list of jets here

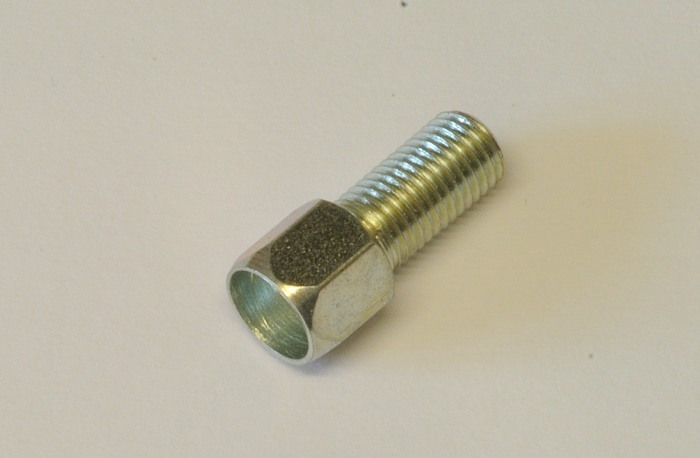

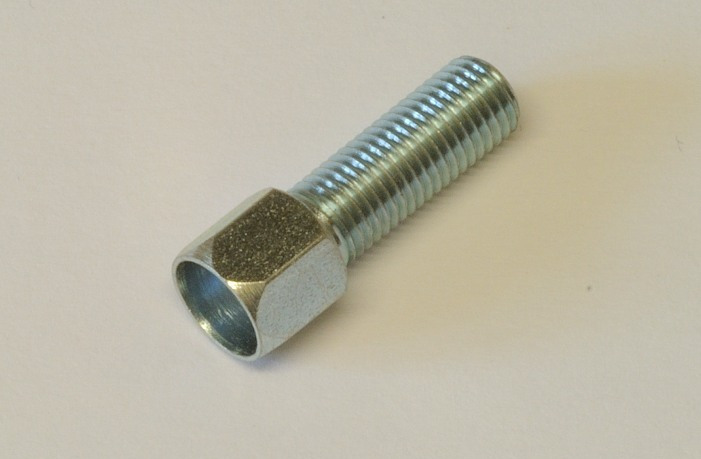

short cable adjuster 12mm of thread £2.85

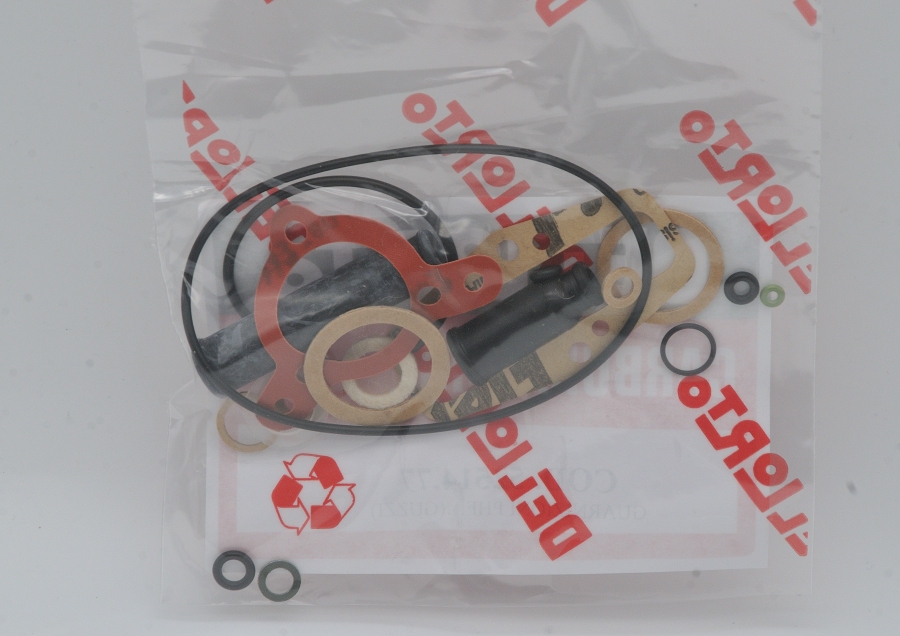

PHF Gasket set. Contains all gaskets, fibre washers and rubber seal needed to rebuild one carb. £14.50

Long Cable adjuster 16mm of thread £4.85

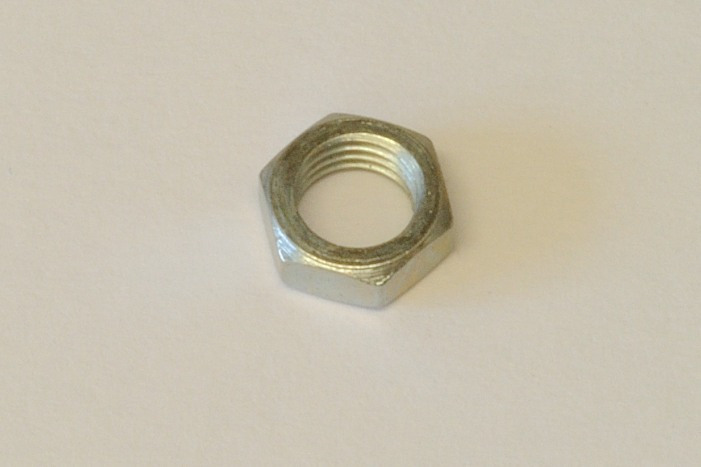

Cable adjuster nut 50p

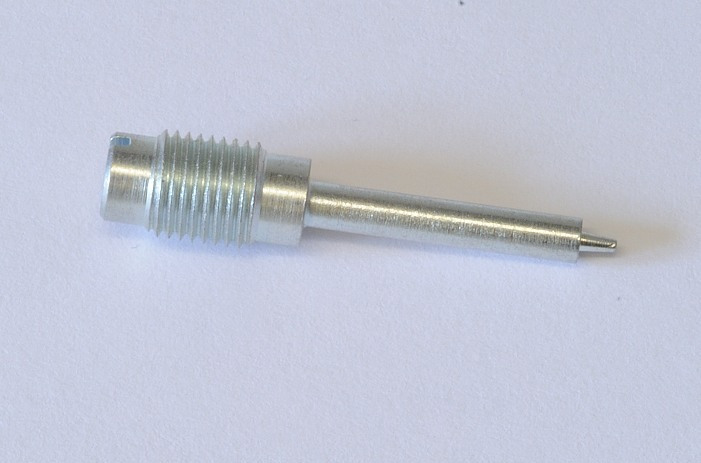

PHF Air screw short tip (2.5mm) £4.80
Part No. 7449, Total Length 33mm, Tip Length 2.5mm ,Parallel shaft length 17.4mm

PHF Air screw long tip motoguzzi type  (5mm) £4.80
PartNo. 11084
Total Length 29mm, Tip Length 4.9mm ,Parallel shaft length 13.8mm

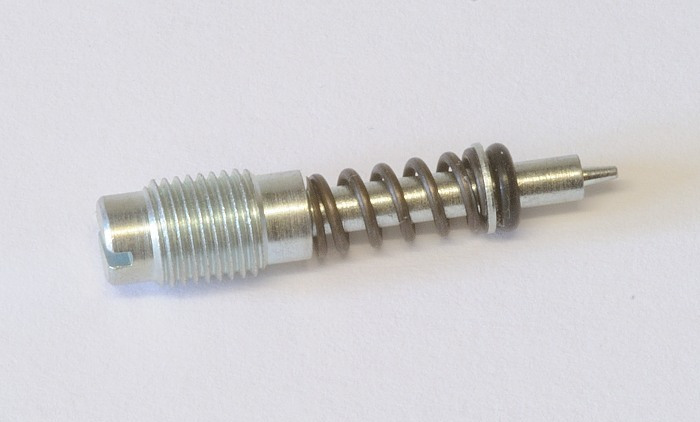

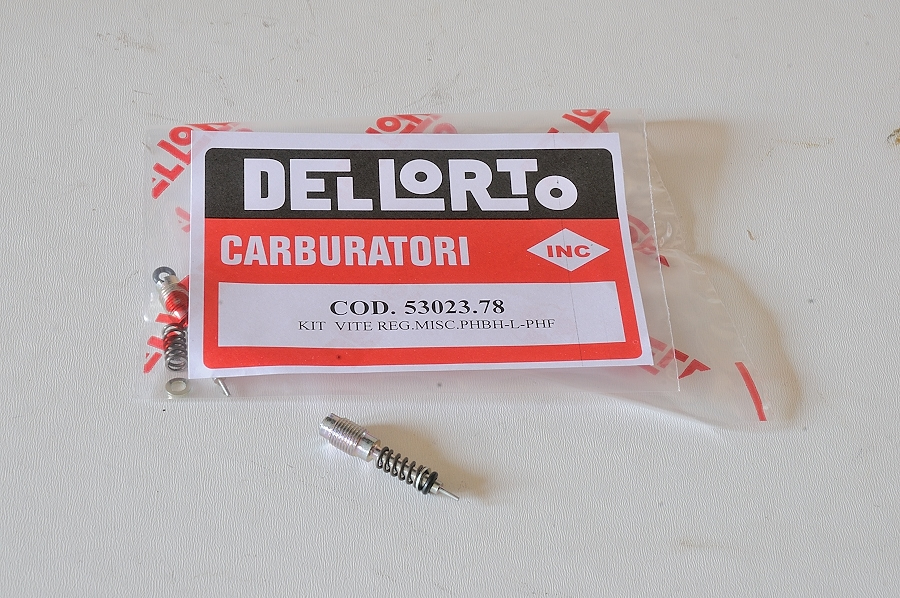

PHF Air screw short tip 7449 kit (2.5mm) . £7.35
Part No. 7449, Total Length 33mm, Tip Length 2.5mm ,Parallel shaft length 17.4mm

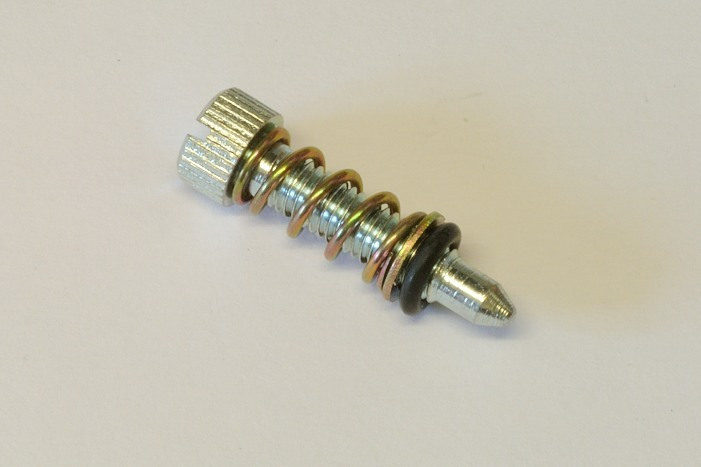

PHF tick over screw, slide height stop. Kit £7.35

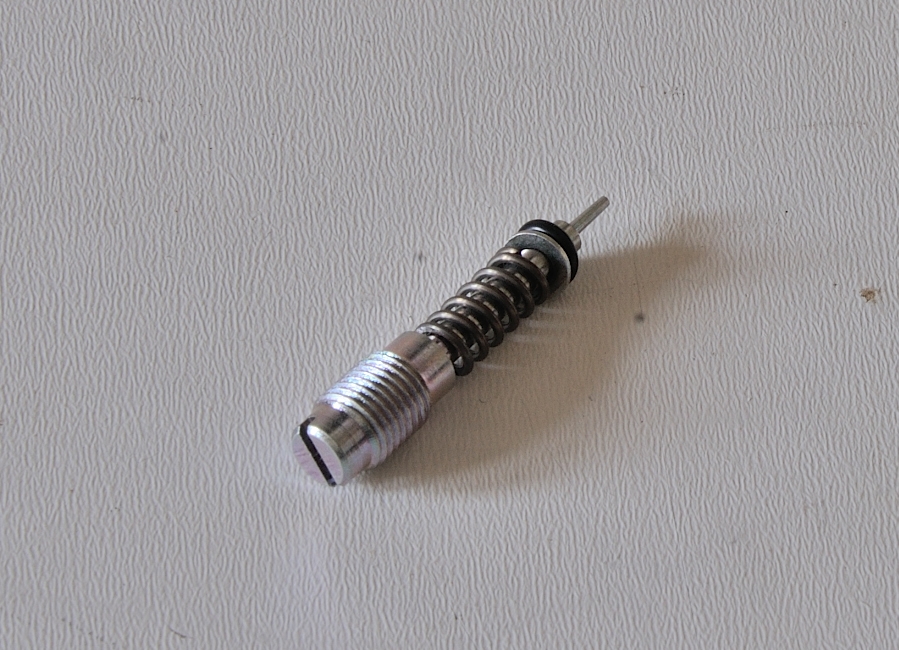

PHF airscrew kit Part No. 9908 £7.35
Total length 36mm  Length of tapered tip 5mm.  Length of parallel shaft 12mm

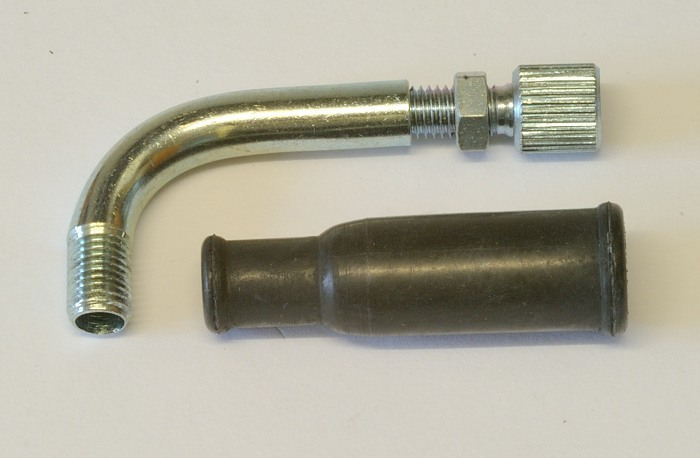

These cable angle fittings for carb tops will fit PHF and others. They are available in 50 70 90 degree angles. £5.40

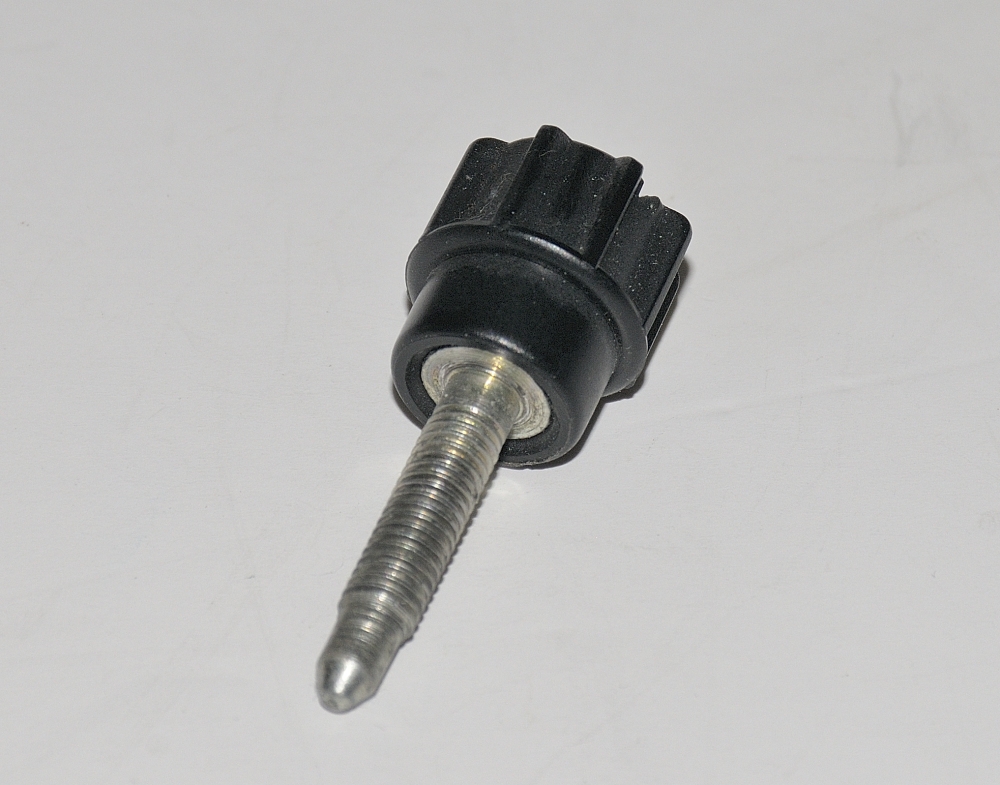

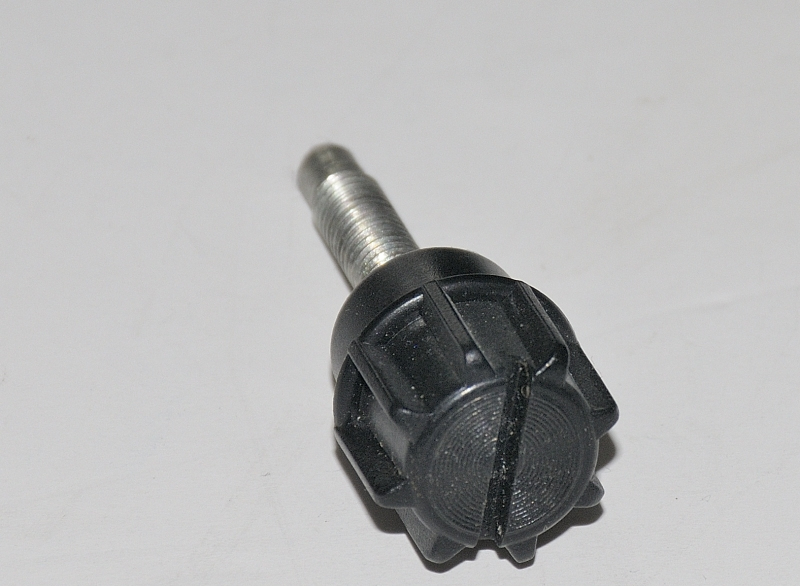

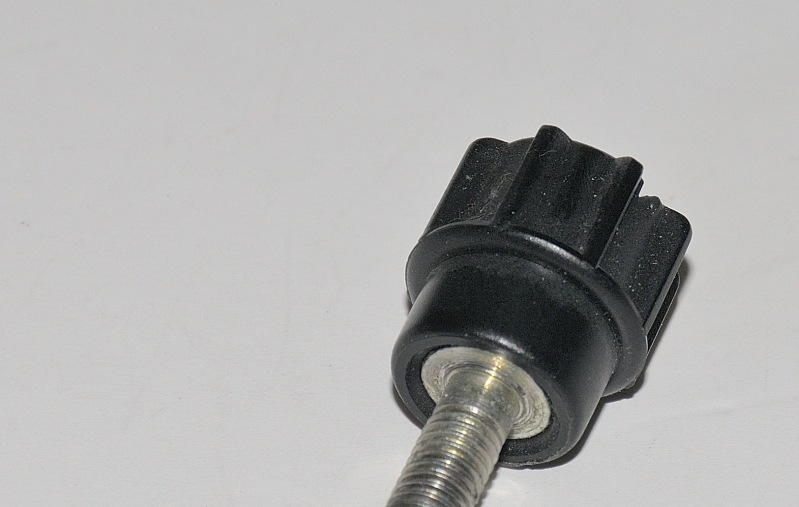

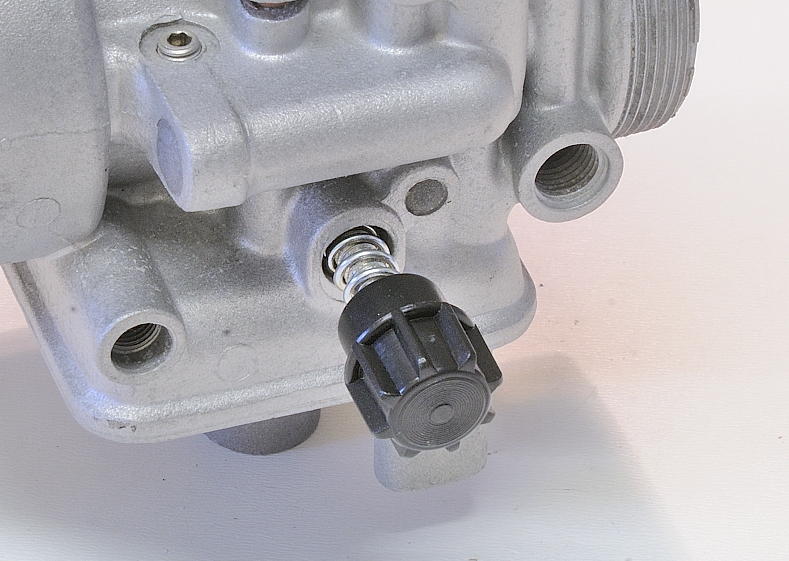

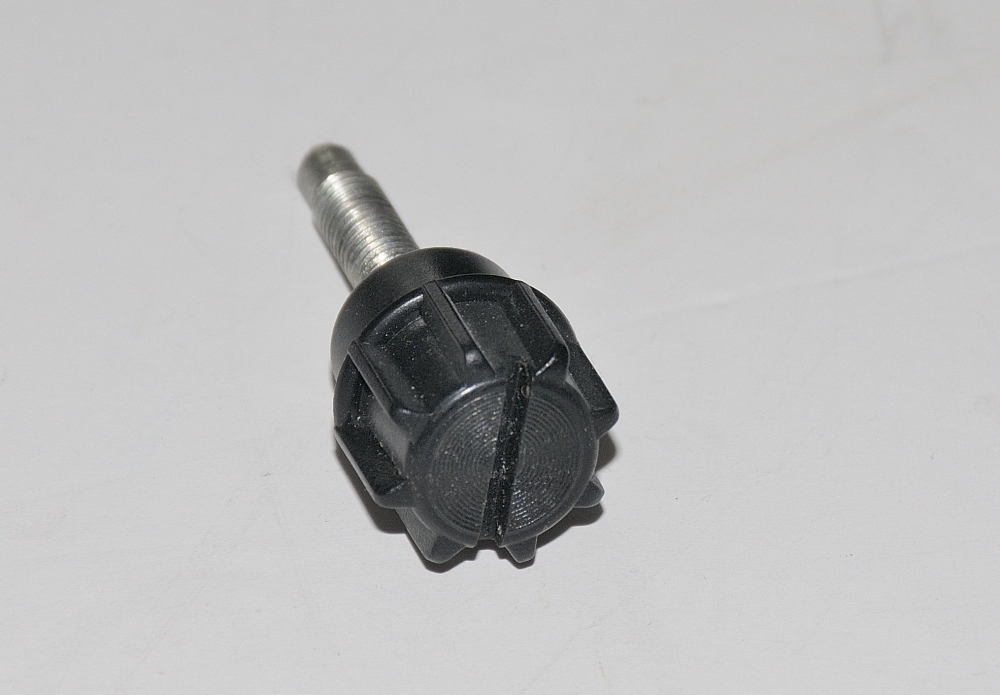

Plastic knob that pushes on to the round knurled ( not the hexagonal) tick over screw to aid adjustment £3.00 each (knob only)

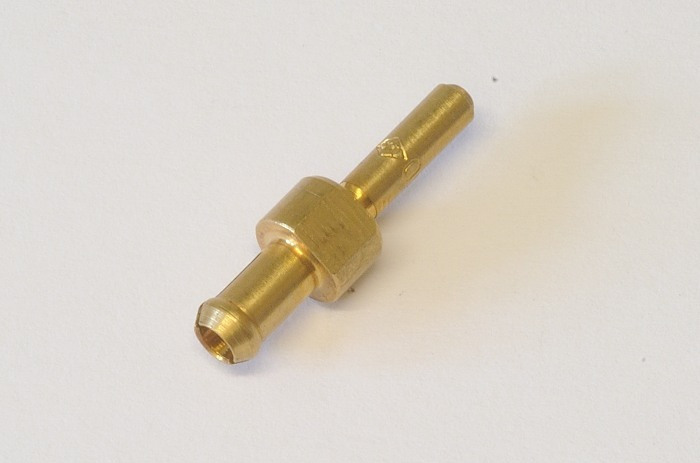

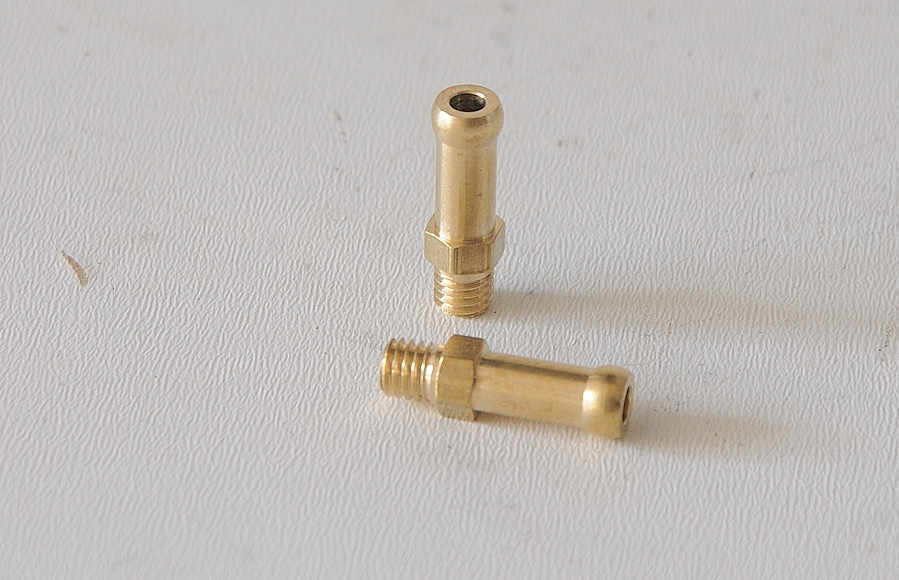

Vacuum take off, 3mm bore for PHF carbs used on Laverda triples. £3.20 each also available with 1mm bore for vacuum fuel taps.

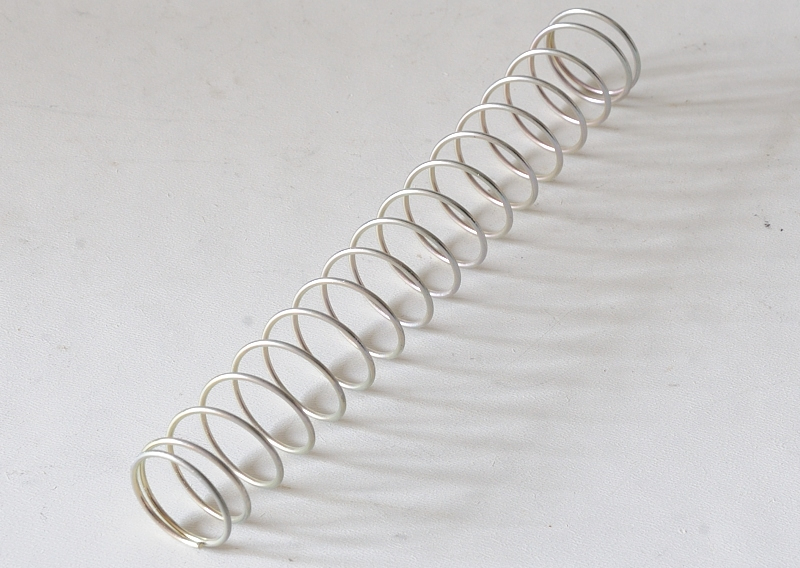

Throttle slide spring 1.4KG Medium £5.95 each

Throttle slide spring 1.77KG Heavy £5.95 each

Throttle slide spring 0.7 KG Light £5.95 each

Dellorto’s replacement for the half round manifold clamp nut £1.10 each

Genuine half round nut for carb inlet clamp bolts.
These are no longer available from Dellorto so when these are gone that's it
 £2.50 each

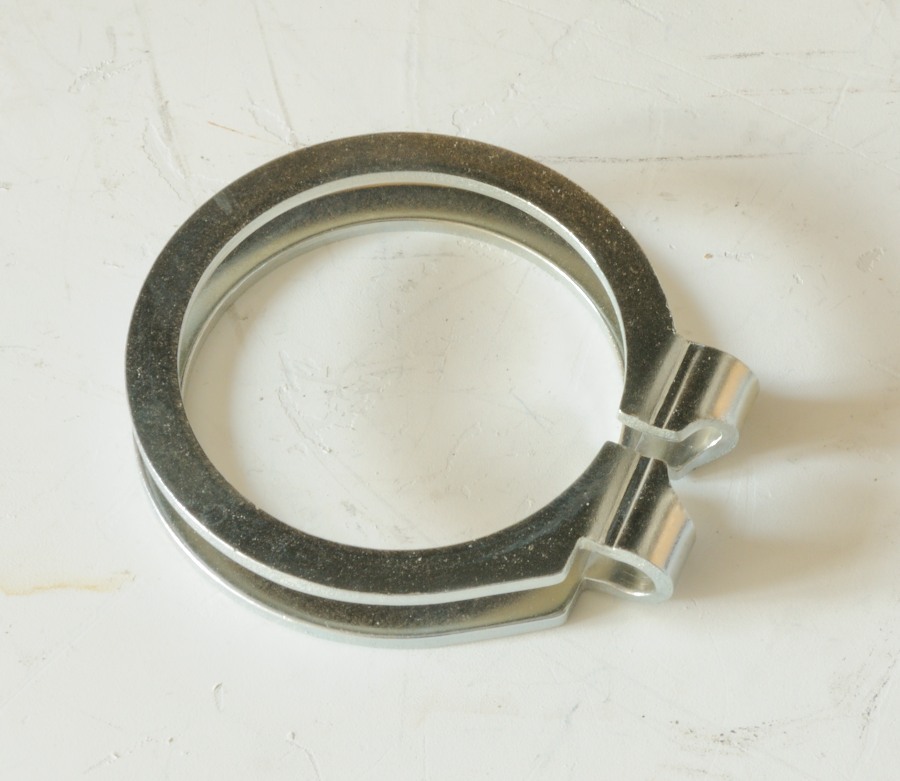

Carb clamp rings for PHF carbs. £18.00 Please note: Dellorto have discontinued these for PHF so I have to get old ones blasted and re plated hence price. For this reason please be aware stocks will fluctuate.

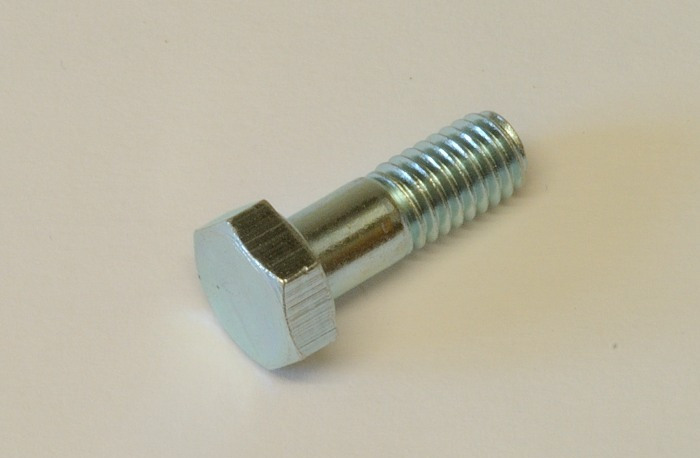

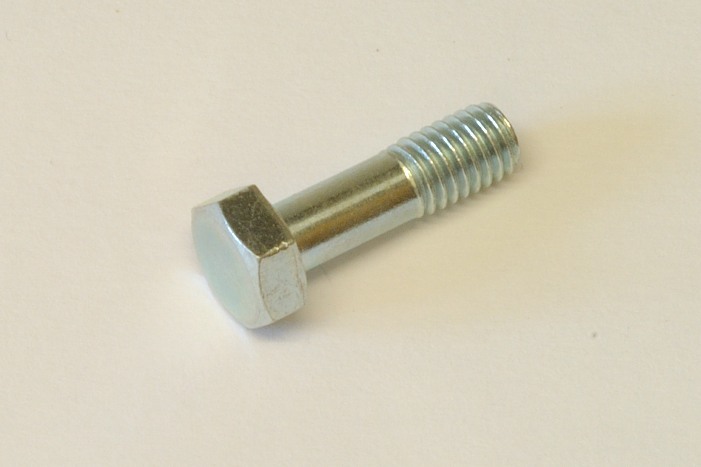

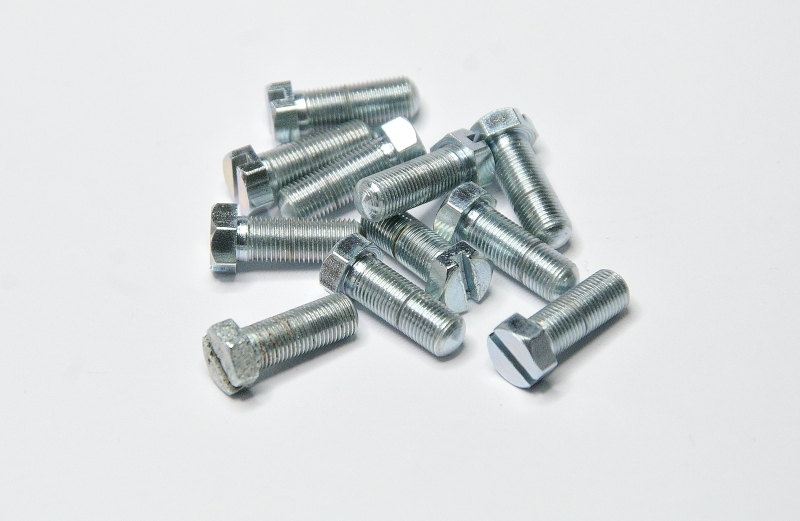

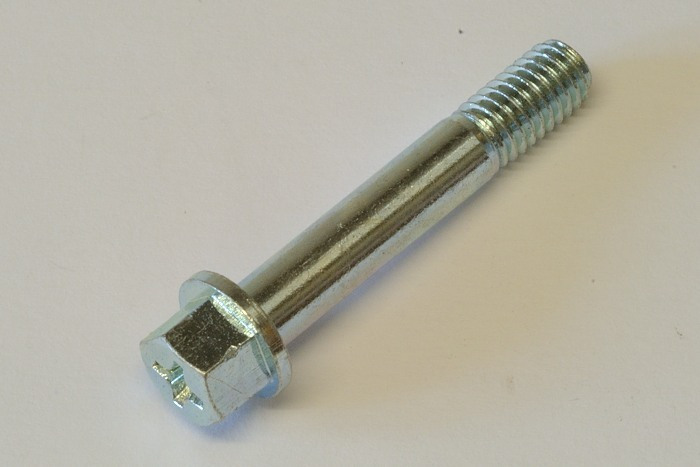

Genuine PHF carb inlet clamp bolt, these are now Crosshead supplied by Dellorto £2.35

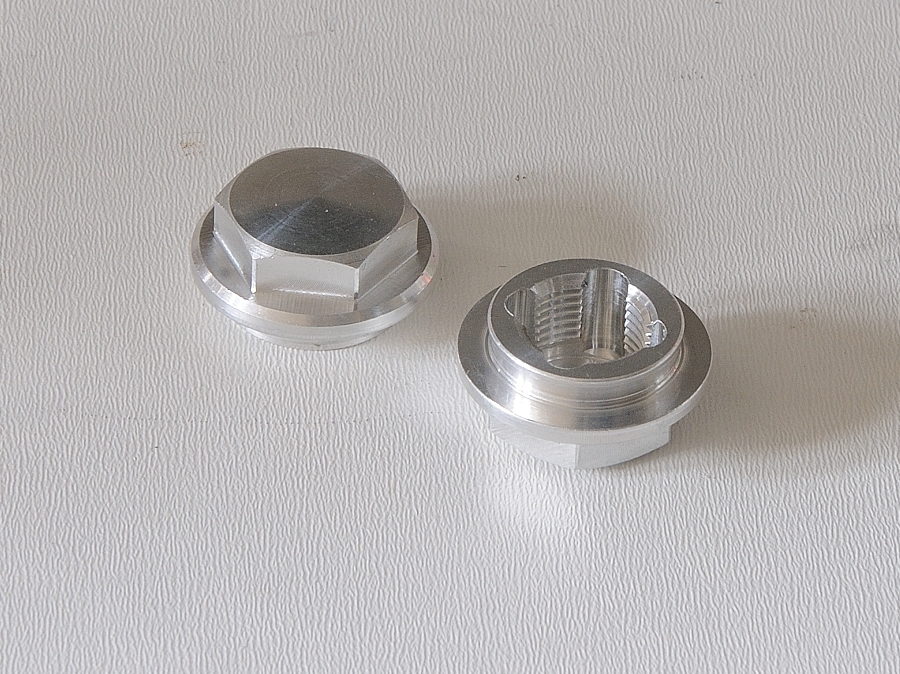

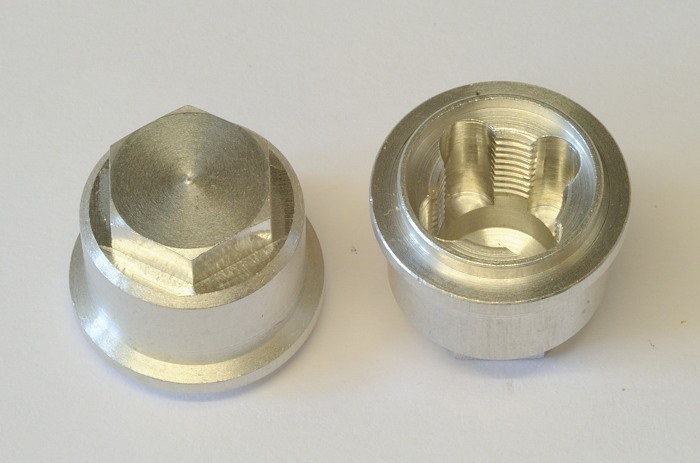

Float bowl nut 14mm spanner size used on most PHF/M carbs £16.25

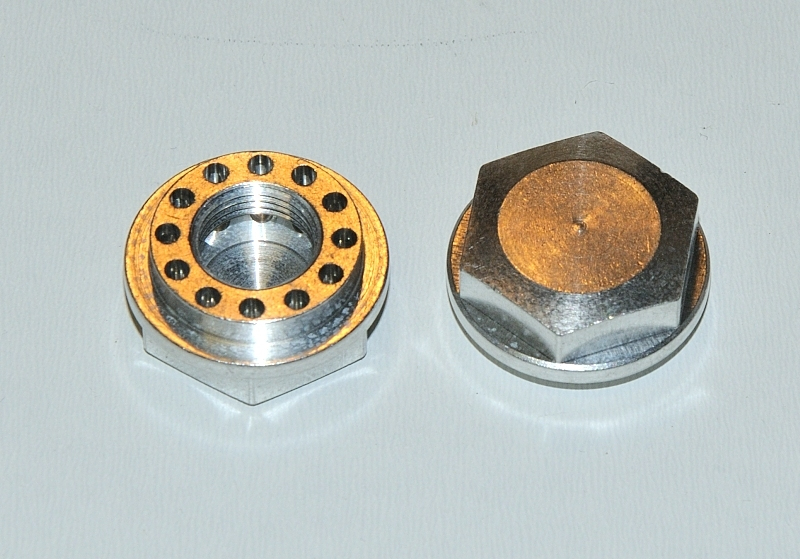

Float bowl nut 21mm spanner size used on later PHF/M carbs £16.25 each

Float bowl nut 17mm spanner size used on later PHF/M carbs  £16.25 each
This uses the saame fibre washer as the 14mm spanner size nut above.

Float bowl nut washer for 21mm spanner size nuts £0.85 each

Original Black 10g floats. These are good used condition as no longer available from Dellorto.  £19.50 each Please ask

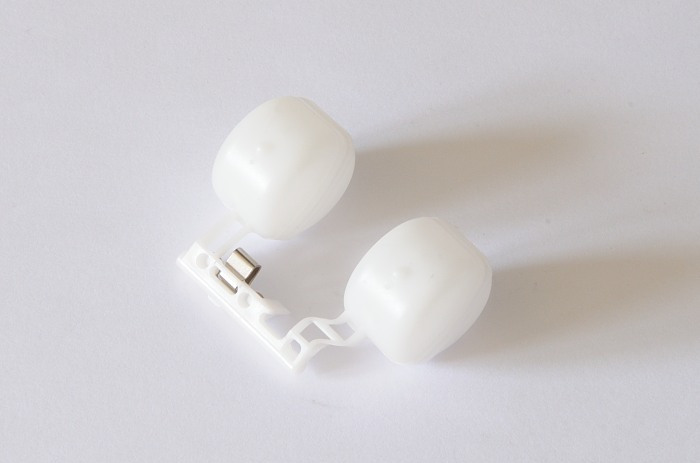

PHF white floats £15.00 each

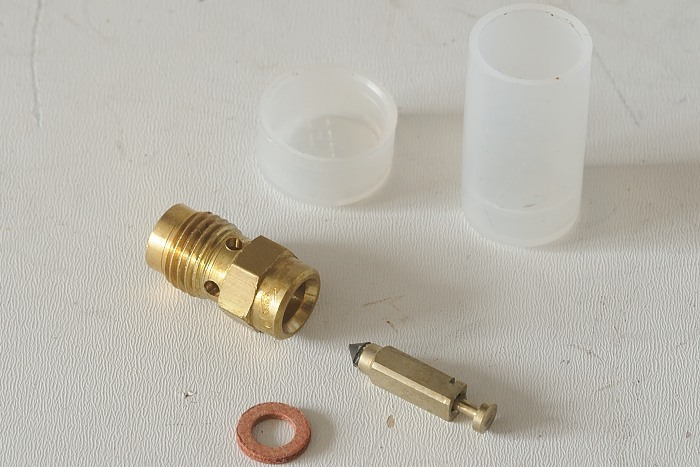

PHF/PHM float valves available in  sizes 200/250/300 (250 is stock for PHF 32) my price £18.50 each

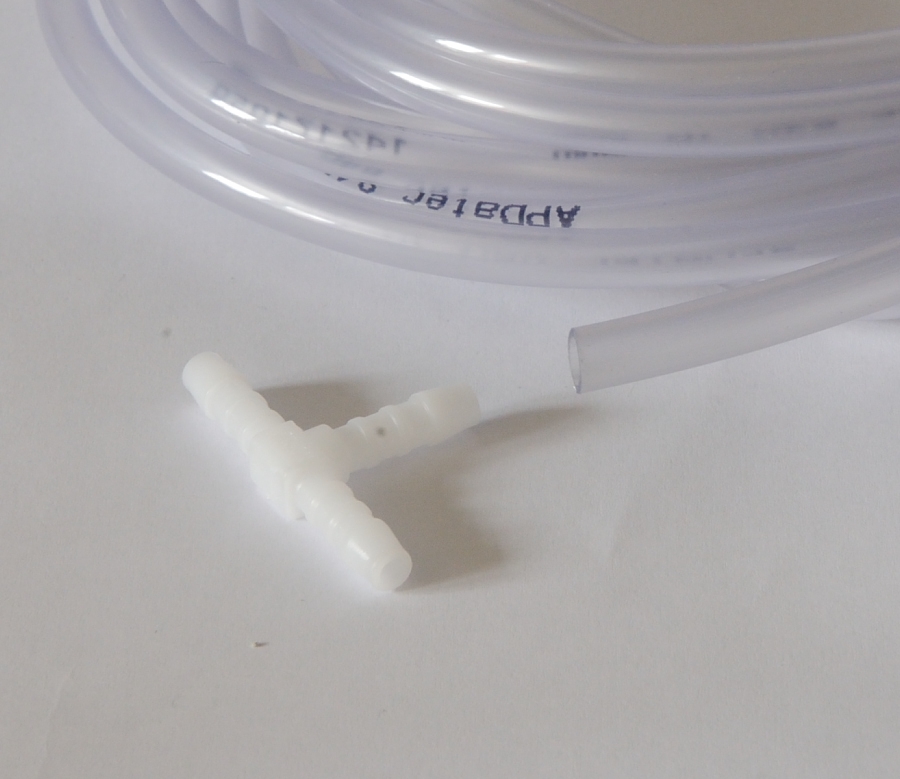

5mm bore vacuum pipe and t pieces for Laverda  vacuum take offs on PHF  Pipe £1.50 for 18”, t piece £1.00 each

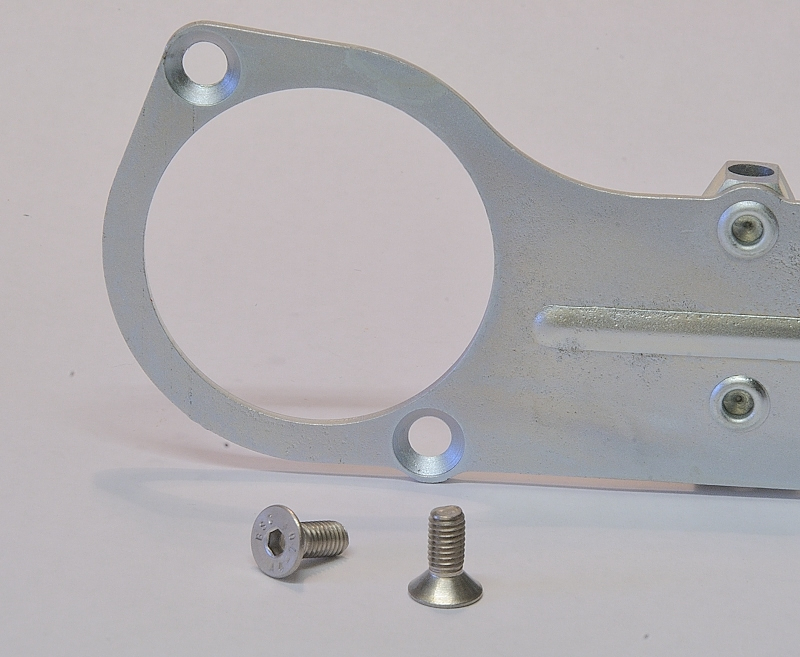

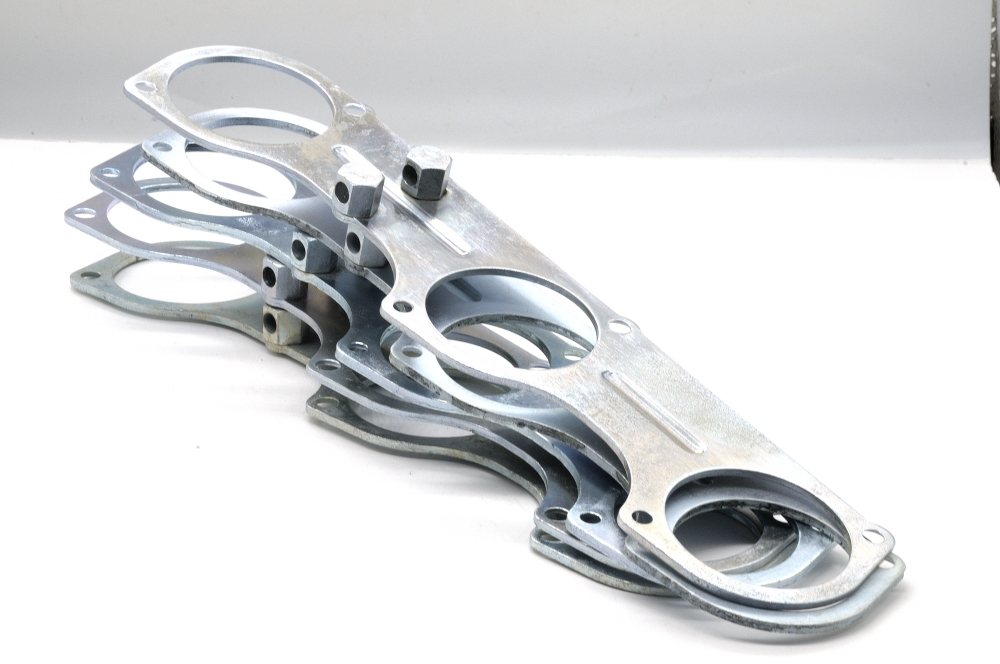

Stainless steel screw for Laverda mounting plate

£0.65p each

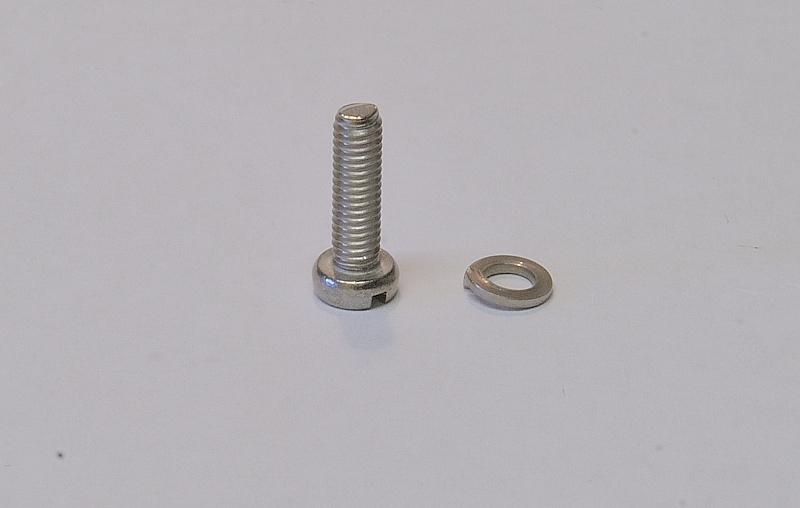

Stainless steel screw to hold slide lift arm to rod and to hold dome top on, comes with Stainless lock washer £0.65p

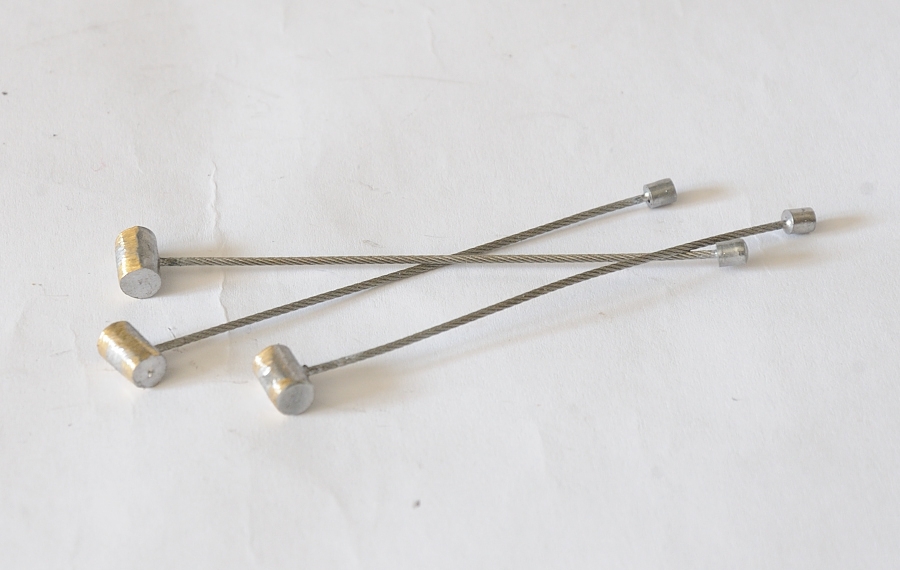

Laverda slide lift cables, cable length between nipples 66mm. Overall length 73mm £5.70 each

Carb top bolts M5 £1.10

PHF Plastic carb tops.£5.00 each. Please state which you requirte as PHF and PHM are different sizes

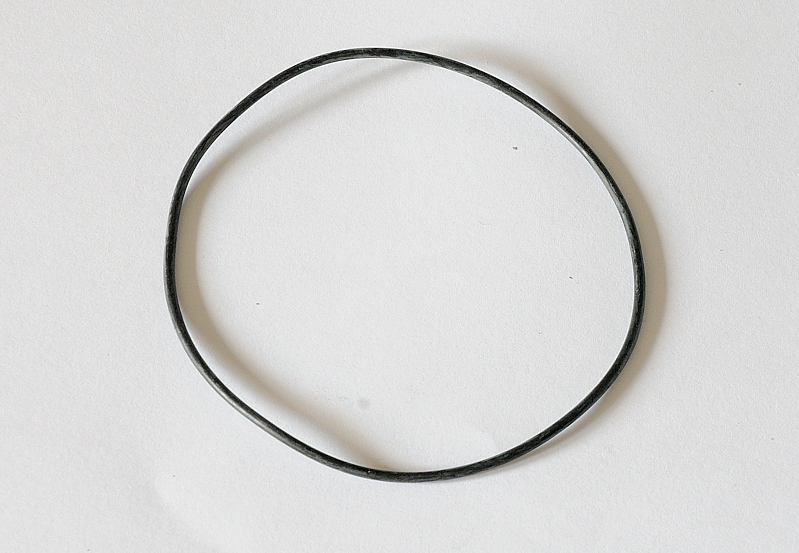

Float bowl O-ring  £2.35

PHF diagram PDF HERE

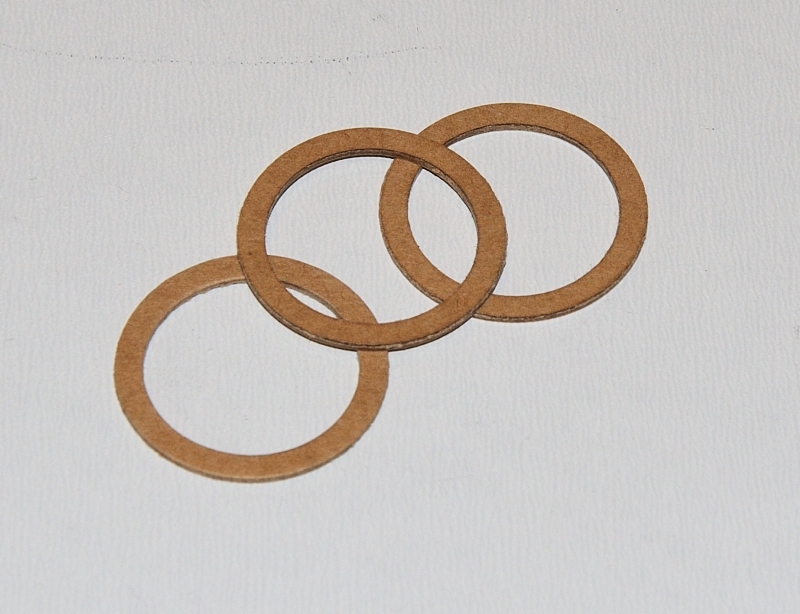

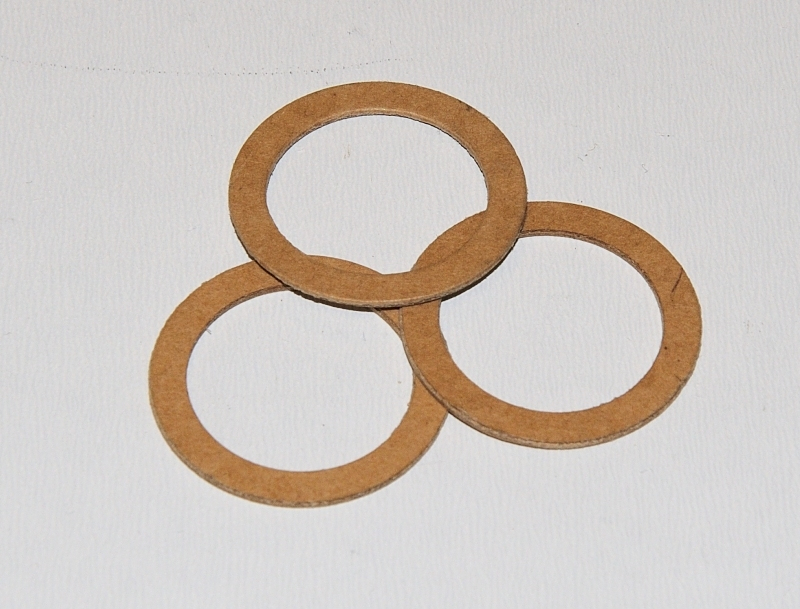

Float bowl nut washer,14mm and 17mm spanner size nuts.  £0.85 each

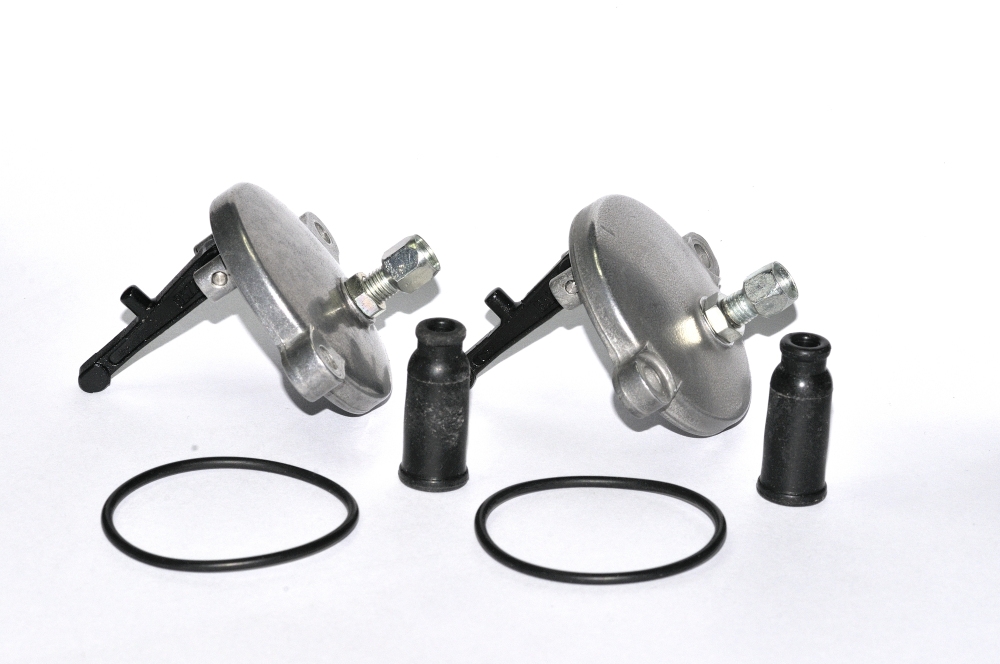

Everything you need to convert cable PHF carbs to side pull for your Guzzi. £135 pair complete.

PHF 32 Laverda 1000/1200 set



Rare opportunity to buy a refurbished set of carbs for a Laverda triple. These are late , rubber manifold type common on the 1000 and 1200. New needles , jets, emulsion tubes, float valves and pump diaphragms. all new gaskets and seals and new mixture screw assemblies. steel parts re-plated and castings blasted and ultrasonically cleaned.

These will be supplied with new Cavis B fuel lines and new choke assemblies.   £775.00.
